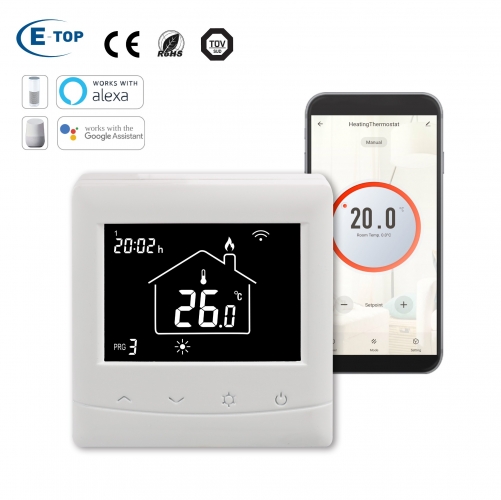

| HT-08 is a classic 86*86 wall thermostat used for floor heating (electric or water) , the thermostat is designed with a large LCD display withing show both set temp and room temperature. The users are easily to do 7 days programming based on their schedule either bythe Smart App or on local thermostat. It also has smart functionalities as a smart home device such as Open window detect, timer, Geofence and so on.. |
| Item Number | HT-08 |
| Display | Black or White LCD |
| Thermostat Dimension | 86*86*16 |
| Material | Anti-flame ABS+PCS(ROHS certificated) |
| Power Input | 230VAC,50/60HZ |
| Load Current | 16A or 3A |
| Set Temp Range | 5~35℃ |
| Display Temp | 0~99℃ |
| Ambient Temp | 0~50℃ |
| Floor Temp | 0~80℃ |
| Relative Humidity | 85% |
| Sensor Type | NTC 3950 10K |
| Accuracy | ± 1℃ |
| Modes | Manual /schedule/eco |
| External Sensor | Yes (floor sensor) |
| Floor Protection | yes |
| Over Heat Protection | yes |
| Programmable/Schedule | yes |
| Interaction Method | Touch button |
| Language | English |
| App | Tuya Smart, Smart Life |
| Certification | CE (RED/ECM/LVD) ,Rohs |
| OEM levels | 1. Customized logo and package 2. Customized software (change to customer's user interface and control logic) 3. Customized hardware(change the PCB and schematic based on the request) |
Q1: Are you a manufacturer or trading company?
We are professional OEM/ODM thermostat manufacturer since 2003 based in Xiamen, Fujian provice, CHina.
Q2: What is your MOQ for batch order?
50 PCS
Q3: What is your stand lead time?
Samples : 3-5 workding days, Batch: 30-40 days
Q4: What certification do you have for your products?
CE/ROHS, FCC,UKCA, REACH(according to request)
Q5: What is your product warranty ?
1 year
Q6: How is the logo print and customized package?
We accept normally 1 color logo print, and customized CMYK printed box.
Q7: Do you have free spares for each order?
We don't have free spares but have free reparing or replacement policy , the qualify rate is 99.5%.
Q8: What is your advantage?
We have the largest manufacturing plant, full manufacturing lines, intact QC/QA systems, concentrated thermostat OEM&ODM service
Q9: What is your main market?
Whole Europe/ME/ Asia/Latin America/ US /Canada
