| Item Number | HT-10R |
| Thermostat Dimension | φ55*69mm |
| Material | ABS+PCS(ROHS certificated) |
| Movement Type | brushless motor |
| Motor Control Method | PID |
| Max Motor Strecth | 5.0mm |
| Battery Life | 1 year |

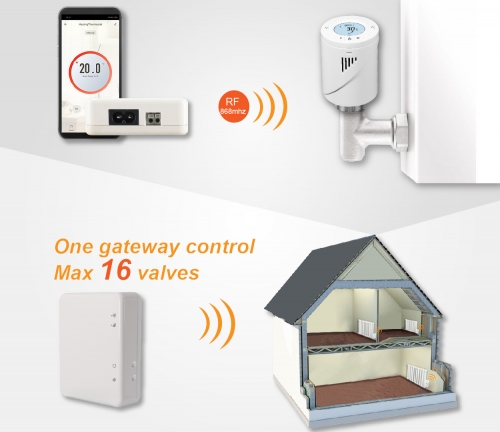

| Wireless Option | Radio 433/868Mhz, Zigbee 2.4Ghz |
| Power Input | AA*2 |
| Set Temp Range | 5~35℃ |
| Ambient Temp | 0~50℃ |
| Floor Temp | 0~80℃ |
| Relative Humidity | 85% |
| Sensor Type | NTC 10K |
| Accuracy | ± 1℃ |
| Modes | Manual (permanent hold)/schedule/eco |
| Window Open Detection | yes |
| Child Lock | yes |
| Programmable/Schedule | 7 days four period programming |
| Interaction Method | Touch button |
| Language | English |
| Certification | CE (RED/ECM/LVD) ,Rohs, UL(according to request), FCC, Energy Star （According to request) |
| OEM levels | 1. Customized logo and package 2. Customized software (change to customer's user interface and control logic) 3. Customized hardware(change the PCB and schematic based on the request) |
