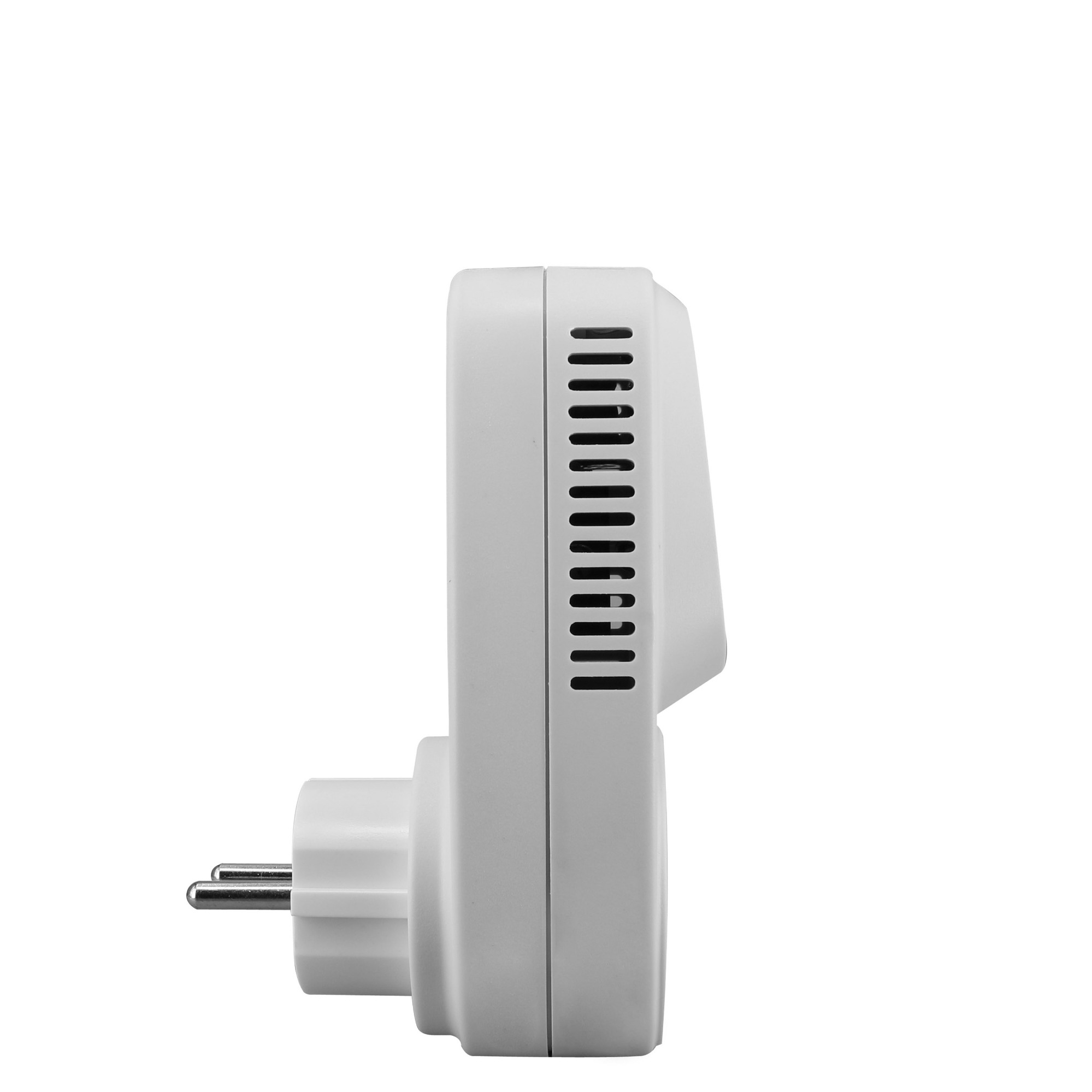

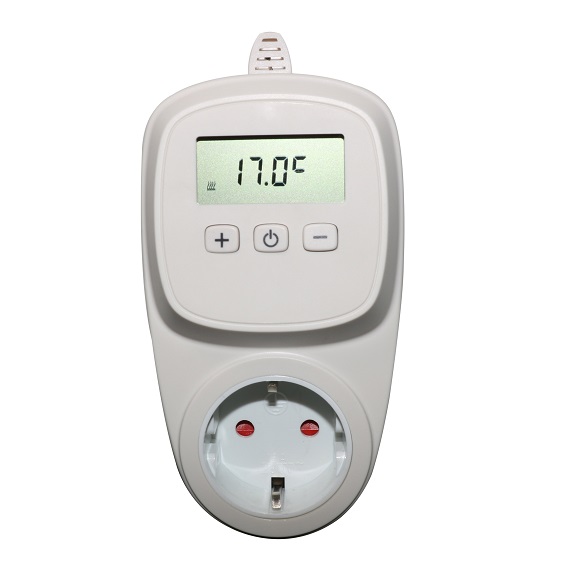

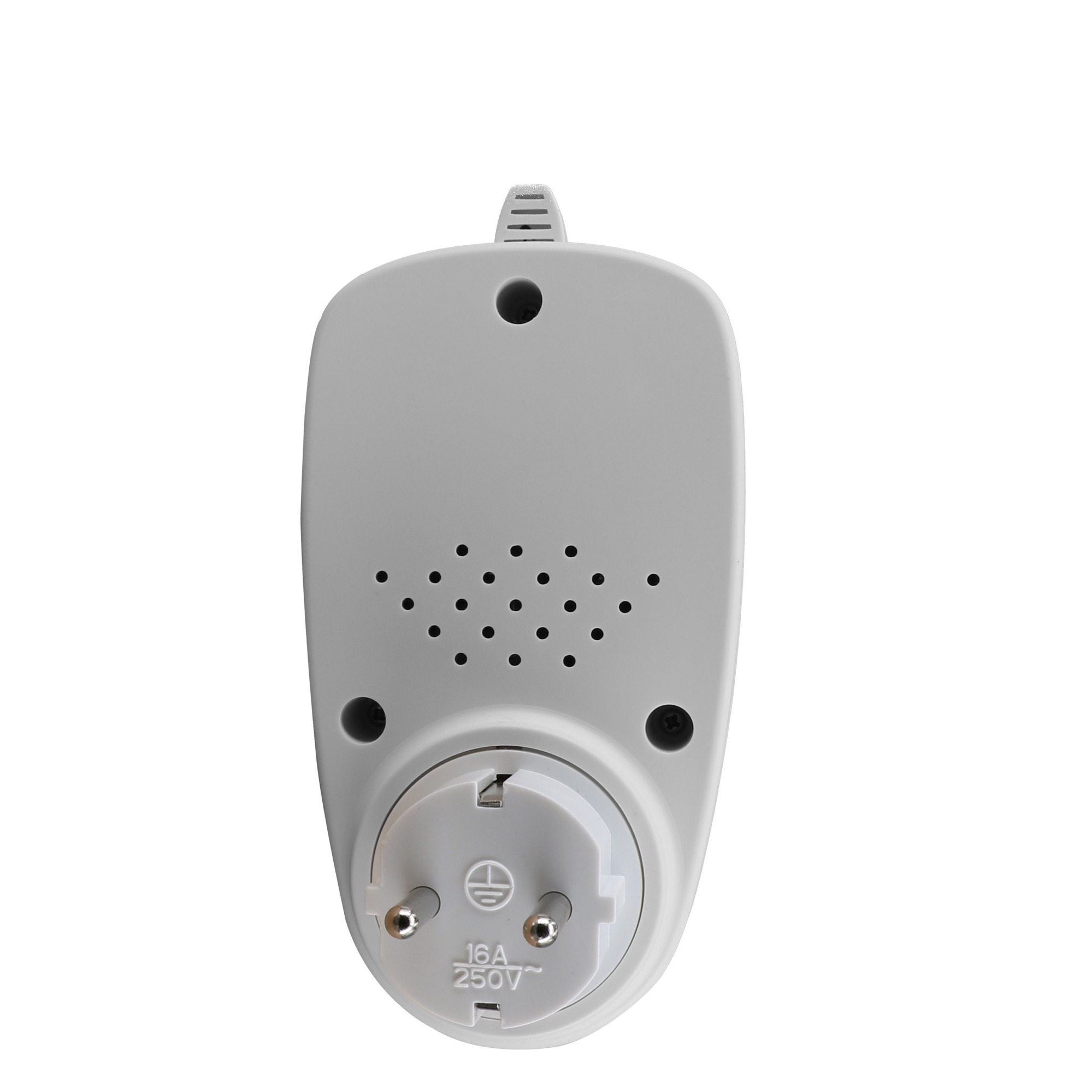

| HT-04NP is an electric simple plug thermostat which could offer MAX 3680W heater output for electric heaters, infrared heaters,base board heaters and so on. The plug has been integrated with 3 press button which are easy for users to do temperature control. The plug has been certified with LVD and EMC for safety regulations in Europe.According to the market,the plugs have DE/UK/IT/FR type for selection. |
| Item Number | HT-04 NP |
| Thermostat Dimension |
140x70x41.5mm
|
| Material | Anti-flame ABS+PCS(ROHS certificated) |
| Power Input | 230VAC,50/60HZ |
| Load Current | 16A |
| Set Temp Range | 5~35℃ |
| Display Temp | 0~99℃ |
| Ambient Temp | 0~50℃ |
| Floor Temp | 0~80℃ |
| Relative Humidity | 85% |
| Sensor Type | NTC 3950 10K |
| Accuracy | ± 1℃ |
| Modes | Manual (permanent hold)/schedule/eco |
| External Sensor | optional |
| Programmable/Schedule | no |
| Interaction Method | Touch button |
| Certification | CE (ECM/LVD) ,Rohs, UL(according to request), |
| Application | Electric Heater,Infrared Heating Panel |
| OEM levels | 1. Customized logo and package 2. Customized software (change to customer's user interface and control logic) 3. Customized hardware(change the PCB and schematic based on the request) |
