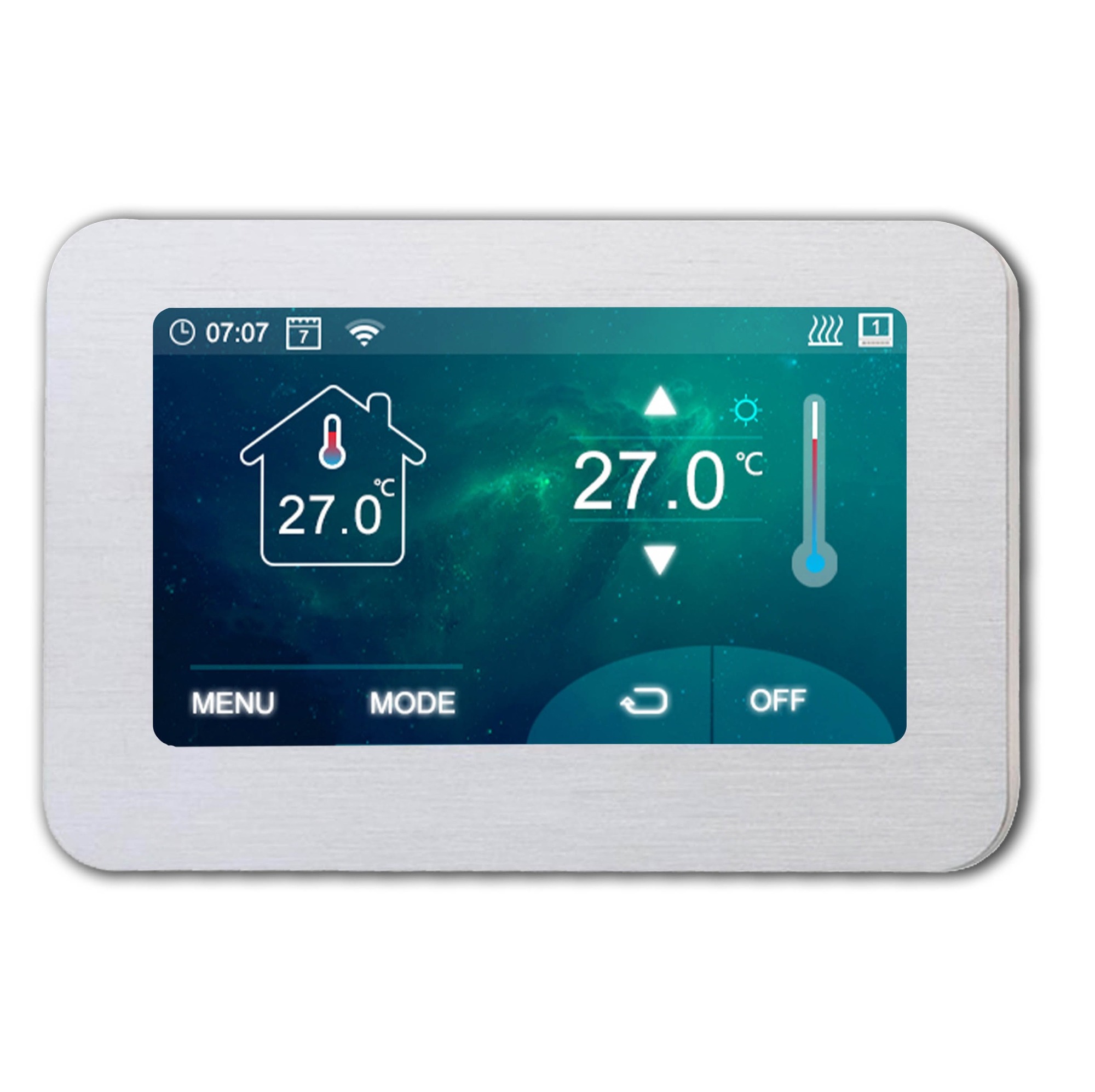

| HT-CS01 is an electric color touch thermostat which is used for MAX 3680W floor heating or low voltage water heating. It's designed with a 4.3" TFT color touch capactive touch screen with multl-languges integrated.The thermostat also support customized user interface to suit for different installation and requirementThe users are easily to do 7 days programming based on their schedule either bythe Smart App or on local thermostat. |
| Item Number | HT-CS01 |
| Thermostat Dimension | 130x87x18.7mm |
| Material | ABS+PCS(ROHS certificated) |
| Power Input | 230VAC,50/60HZ |
| Load Current | 16A |
| Set Temp Range | 5~35℃ |
| Ambient Temp | 0~50℃ |
| Floor Temp | 0~80℃ |
| Relative Humidity | 85% |
| Sensor Type | NTC 10K |
| Accuracy | ± 1℃ |
| Modes | Manual (permanent hold)/schedule/eco |
| External Sensor | Yes (floor sensor) |
| Floor Protection | yes |
| Over Heat Protection | yes |
| Programmable/Schedule | yes |
| Interaction Method | Touch TFT LCD Screen |
| Language | English/Spanish/German/Italian/Portuguese |
| Certification | CE (RED/ECM/LVD) ,Rohs, UL(according to request), FCC, Energy Star （According to request) |
| OEM levels | 1. Customized logo and package 2. Customized software (change to customer's user interface and control logic) 3. Customized hardware(change the PCB and schematic based on the request) |
