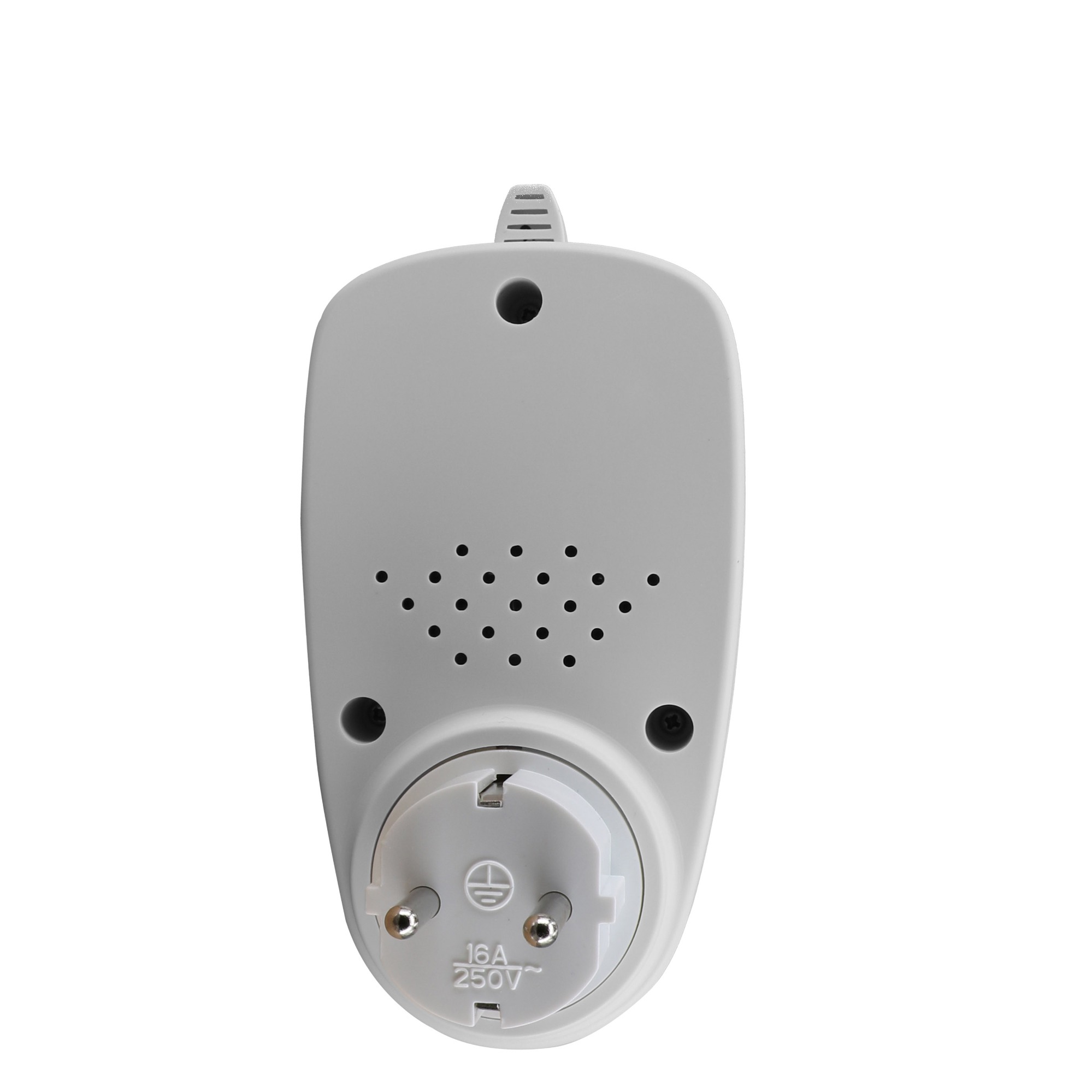

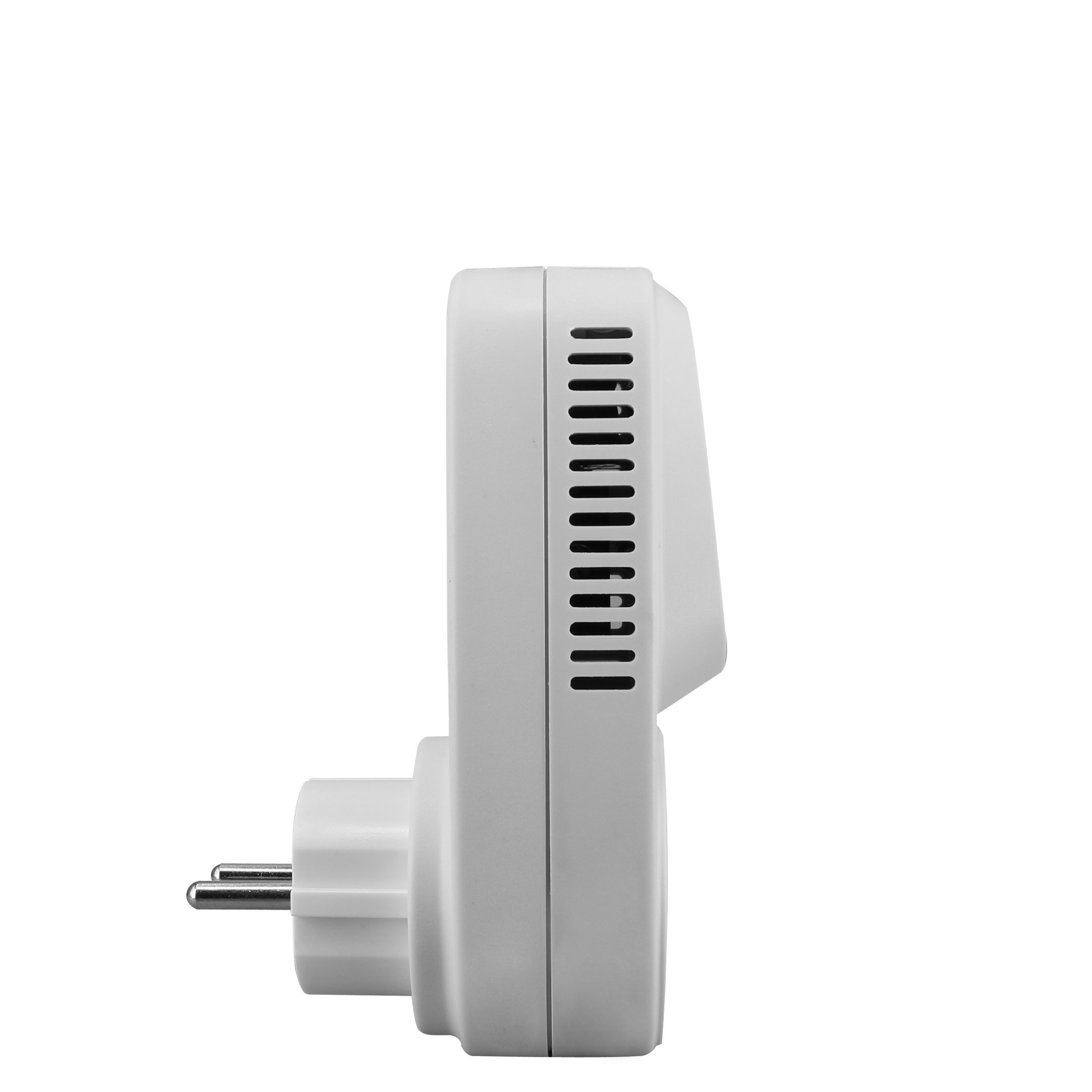

| HT-04 is an electric plug thermostat which could offer MAX 3680W heater output for electric heaters, infrared heaters,base board heaters and so on. The plug has been integrated with 5 press button which are easy for users to do 7 days schedule programming, setting of different working modes.. The plug has been certified with LVD and EMC for safety regulations in Europe.According to the market,the plugs have DE/UK/IT/FR type for selection. |
| Item Number | HT-04 |
| Thermostat Dimension |
140x70x41.5mm
|
| Material | Anti-flame ABS+PCS(ROHS certificated) |
| Power Input | 230VAC,50/60HZ |
| Load Current | 16A |
| Set Temp Range | 5~35℃ |
| Display Temp | 0~99℃ |
| Ambient Temp | 0~50℃ |
| Floor Temp | 0~80℃ |
| Relative Humidity | 85% |
| Sensor Type | NTC 3950 10K |
| Accuracy | ± 1℃ |
| Modes | Manual (permanent hold)/schedule/eco |
| External Sensor | optional |
| Programmable/Schedule | no |
| Interaction Method | Touch button |
| Certification | CE (ECM/LVD) ,Rohs, UL(according to request), |
| Application | Electric Heater,Infrared Heating Panel |
| OEM levels | 1. Customized logo and package 2. Customized software (change to customer's user interface and control logic) 3. Customized hardware(change the PCB and schematic based on the request) |
