Item Number | HT-10R |
Thermostat Dimension | φ55*69mm |
Material | ABS+PCS(ROHS certificated) |
Movement Type | brushless motor |
Motor Control Method | PID |
Max Motor Strecth | 5.0mm |
Battery Life | 1 year |

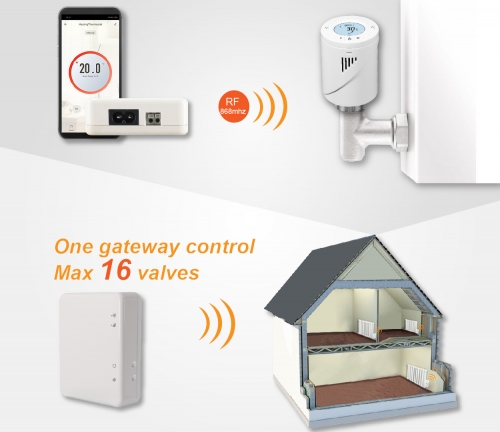

Wireless Option | Radio 433/868Mhz, Zigbee 2.4Ghz |
Power Input | AA*2 |
Set Temp Range | 5~35℃ |
Ambient Temp | 0~50℃ |
Floor Temp | 0~80℃ |
Relative Humidity | 85% |
Sensor Type | NTC 10K |
Accuracy | ± 1℃ |
Modes | Manual (permanent hold)/schedule/eco |
Window Open Detection | yes |
Child Lock | yes |
Programmable/Schedule | 7 days four period programming |
Interaction Method | Touch button |
Language | English |
Certification | CE (RED/ECM/LVD) ,Rohs, UL(according to request), FCC, Energy Star (According to request) |
OEM levels | 1. Customized logo and package 2. Customized software (change to customer's user interface and control logic) 3. Customized hardware(change the PCB and schematic based on the request) |
